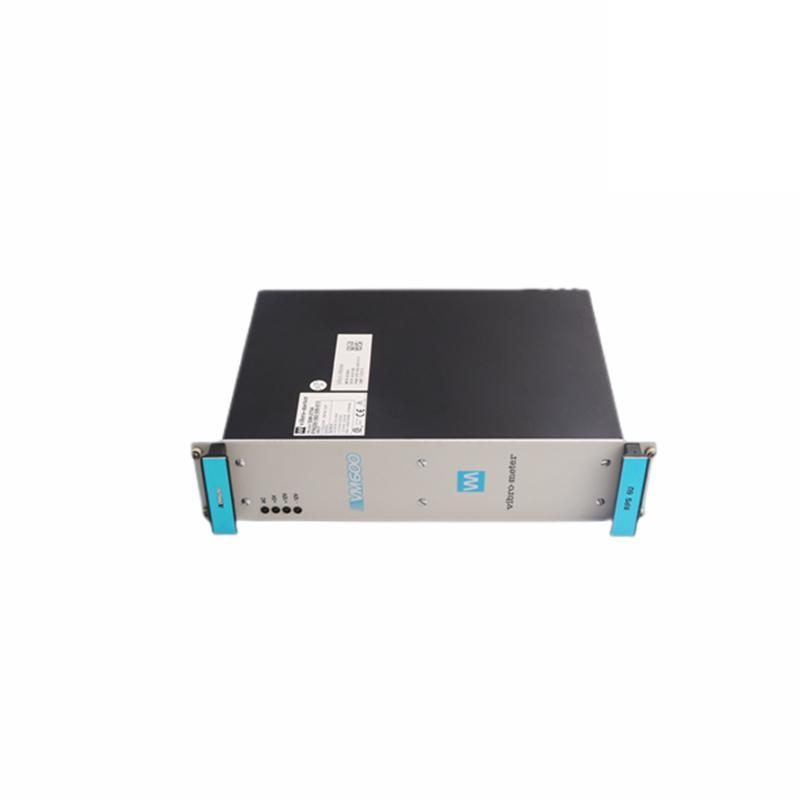

The following is a detailed analysis of the VM600 RPS6U 200-582-500-013 centralized vibration mechanical protection system module, covering technical specifications, configuration guidelines, compatibility, troubleshooting, and ways to obtain support:

1、 Technical specifications
Core functions
High precision vibration monitoring: supports multi-channel input (such as 4 dynamic channels+2 speed channels), can synchronously monitor the vibration, speed, displacement and other parameters of multiple measuring points.
Signal processing and analysis:
Provide frequency analysis (within the frequency range of 0.1Hz to 10kHz) to identify fault modes.
Support vibration trend analysis and predict potential equipment failures.
Alarm and protection: configurable alarm threshold, triggering alarm or control operation (such as shutdown) in case of abnormality.
Communication capability: Supports protocols such as Ethernet, Modbus, Profibus, etc., making it easy to integrate into DCS or PLC systems.
hardware features
Power redundancy: Supports dual power modules (RPS6U) to ensure high availability.
Input/Output:
Sensor interface: Supports eddy current sensors, accelerometers, etc.
Output options: 4 programmable relays, supporting voltage/current output (0-10V or 4-20mA).
Environmental adaptability: Compliant with industrial standards (such as T Ü V SIL 1 certification), suitable for harsh environments.

2、 Configuration Guide
basic configuration
Sensor wiring: Connect the sensor to the module input terminal according to the manual specifications (pay attention to EMI protection).
Communication settings:
Set parameters such as IP address and baud rate through specialized software (such as VM600 configuration tool).
Example: If connecting to a PLC, the Modbus RTU slave address needs to be configured (if set to 3).
Alarm threshold: Set the vibration amplitude or frequency threshold according to the equipment specifications (such as triggering an alarm when the bearing vibration is greater than 5mm/s).
ADvanced
Redundant configuration: Enable dual power modules to enhance system reliability.
Network integration: Connect the module to the SCADA system through Profibus DP or Ethernet to achieve remote monitoring.
3、 Compatibility
device compatibility
Sensor: Compatible with mainstream vibration sensors (such as Bently Nevada 3300 series).
Control system: Supports Siemens S7-1500, Allen Bradley ControlLogix and other PLCs, as well as DeltaV and other DCS systems.
Communication protocol: Supports Modbus TCP/RTU Profibus DP、Ethernet/IP， Adapt to most industrial networks.
4、 Troubleshooting
Common problem analysis
No vibration data:
Check the power supply of the sensor (such as whether+24V is normal).
Verify the wiring (such as whether the sensor signal wire is short circuited).
Communication failure:
Confirm that there is no conflict in the IP address (such as setting the module IP to 192.168.1.100 and the PLC to 192.168.1.200).
Check if the firewall is blocking ports (such as Modbus default port 502).
False alarm:
Re calibrate the module (through automatic calibration function).
Adjust the alarm threshold (such as lowering the trigger threshold).
Maintenance suggestions
Regular calibration: Perform sensor calibration once a year (refer to manual steps).
Firmware upgrade: Download the latest firmware from the official website and fix potential vulnerabilities.
